Measuring the Earth–Moon System: Lunar Laser Ranging and Millimeter Geodesy
How Apollo-era retroreflectors let observatories measure the Moon, test gravity, and strengthen lunar reference frames.
On This Page
- 01 — Introduction
- 02 — A Corner Cube Returns the Beam
- 03 — Timing a Two-and-a-Half-Second Journey
- 04 — Atmosphere and Station Coordinates
- 05 — The Moon Rotates and Wobbles
- 06 — Science from Repeated Range
- 07 — A Lunar Coordinate Frame
- 08 — What the Modern Surveyor Can Carry Forward
- 09 — Sources and Further Reading
Series: Surveying the Space Age
Some of the most precise surveying ever attempted uses a target nearly 240,000 miles away. Laser pulses fired from Earth observatories strike retroreflector arrays placed on the Moon and return toward the source, allowing distance to be inferred from round-trip travel time.
Apollo 11, 14, and 15 carried retroreflectors, and Soviet Lunokhod rovers carried others. The experiment continues decades later, linking timing, optics, atmospheric modeling, observatory coordinates, lunar orientation, and orbital dynamics.
NASA/GSFC/Arizona State University, PIA13037. Public-domain government image. Source.
A Corner Cube Returns the Beam
A corner-cube reflector sends incoming light back toward its source across a range of incident directions. Arrays improve the chance that some photons return to the telescope.
The reflector is passive; precision comes from the complete system of laser timing, telescope pointing, calibration, and modeling.
The evidence behind a corner cube returns the beam is a chain rather than a single artifact. High-precision control, optical alignment, inertial navigation, radio tracking, laser ranging, timing, and reference-frame estimation became useful only when observations, reference, computation, checking, and preservation worked together. That chain is the part a modern geomatics professional should look for when a finished map or coordinate appears more certain than its history.
Timing a Two-and-a-Half-Second Journey
The round trip averages roughly 2.5 seconds. Modern stations measure the event with extremely precise clocks and accumulate photon returns over an observing session.
Distance is time multiplied by light speed, but instrumental delays and calibration must be known before that elegant equation becomes a defensible range.
The field environment shaped every result. In large launch structures, vibration, thermal movement, restricted work zones, moving vehicles, and the geometry of Earth and Moon, access, weather, visibility, transport, human endurance, and communication limited what could be observed. Successful crews built procedures around those limits instead of assuming an instrument specification would survive unchanged outside the workshop.
Atmosphere and Station Coordinates
The laser passes through Earth’s atmosphere twice, so pressure, temperature, humidity, and atmospheric models affect the reduction. The terrestrial station must also be known in a stable reference frame.
A lunar range is inseparable from Earth geodesy. A moving or poorly modeled observatory contaminates the inferred Moon distance.
NASA, contractors, observatories, tracking networks, standards laboratories, and international geodetic services gave the work scale through standards, training, archives, and authority. Institutions also selected priorities and decided how measurements would be used. A complete history therefore examines both technical accomplishment and the administrative system that commissioned it.

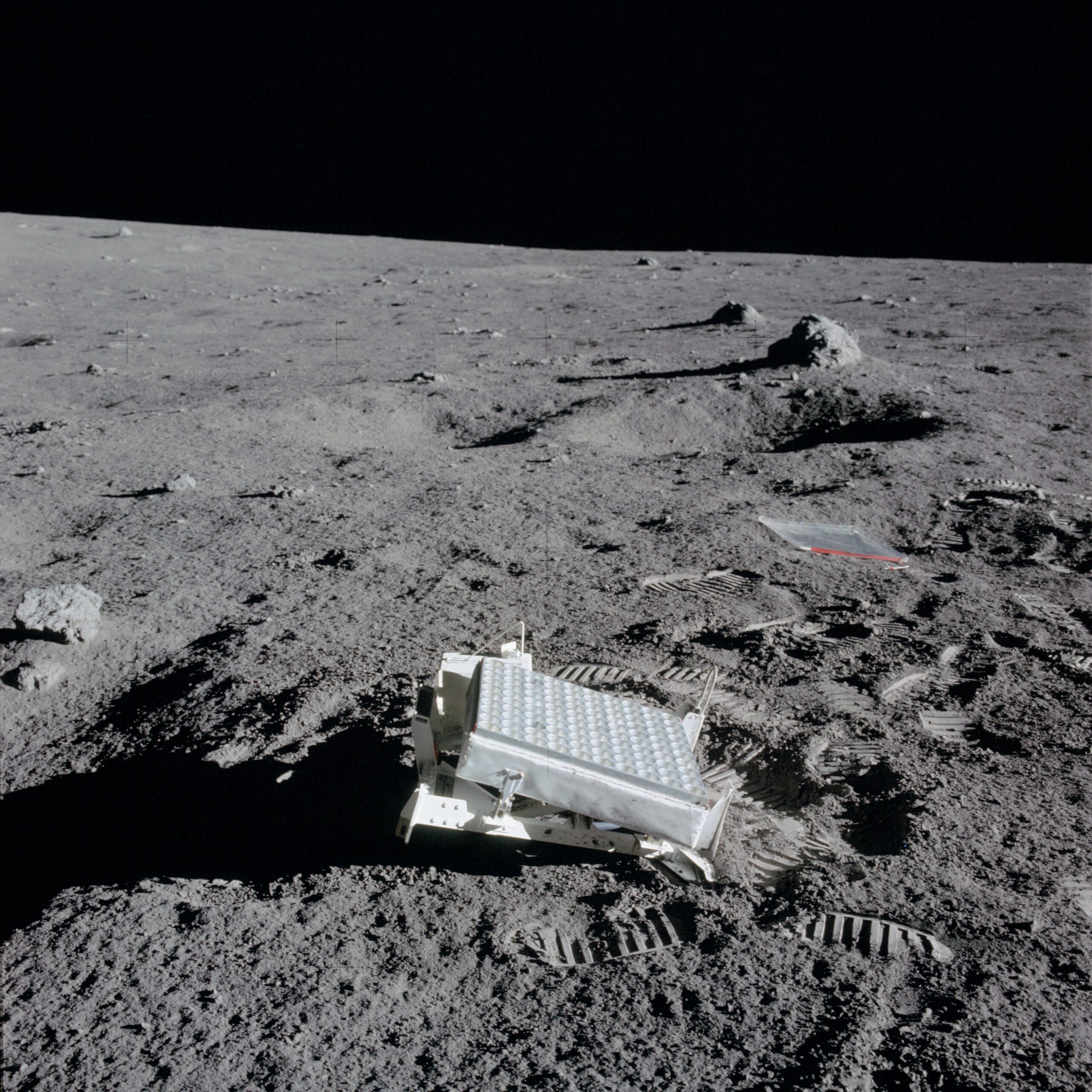

NASA, Apollo 14 image AS14-67-09386. Public-domain government image. Source.
The Moon Rotates and Wobbles
Lunar libration changes reflector orientation and the geometry of the array. Modeling the Moon’s orbit, rotation, tides, and internal response is part of interpreting the observations.
The target is not fixed in a simple two-body diagram. High precision exposes dynamics that lower precision can ignore.
The error budget included instrument alignment, control stability, thermal expansion, timing, atmospheric delay, reference-frame realization, sensor bias, and orbital modeling. Some effects could be calibrated, some modeled, some reduced by stronger geometry, and some only bounded through repetition. The terminology predates modern uncertainty statements, but the discipline of identifying what could move the answer is unmistakable.
Science from Repeated Range
Long records constrain the Moon’s recession, gravitational physics, Earth orientation, lunar interior, and ephemerides. NASA-supported research reports millimeter-level nightly accuracy for the APOLLO data set.
Precision becomes science through time series. A single excellent range is less powerful than a stable, traceable record spanning years.
The connection to present practice is direct. launch-site metrology, spacecraft navigation, GNSS, satellite and lunar laser ranging, and planetary mapping still depends on declared reference, sensor calibration, independent checks, and metadata. Faster computation changes the volume of work; it does not make lineage optional.
A Lunar Coordinate Frame
Known reflector positions provide fundamental points on the Moon. Orbital images and landing-site coordinates can be related to this frame, improving navigation and mapping.
Control points serve the same role across worlds: they connect observations made by different instruments and missions to a shared geometry.
Primary sources reward cautious reading. Published products compress abandoned observations, instrument repairs, judgment calls, and later revisions. Field notes, correspondence, control diagrams, and institutional reports help separate what was observed at the time from what later writers inferred.

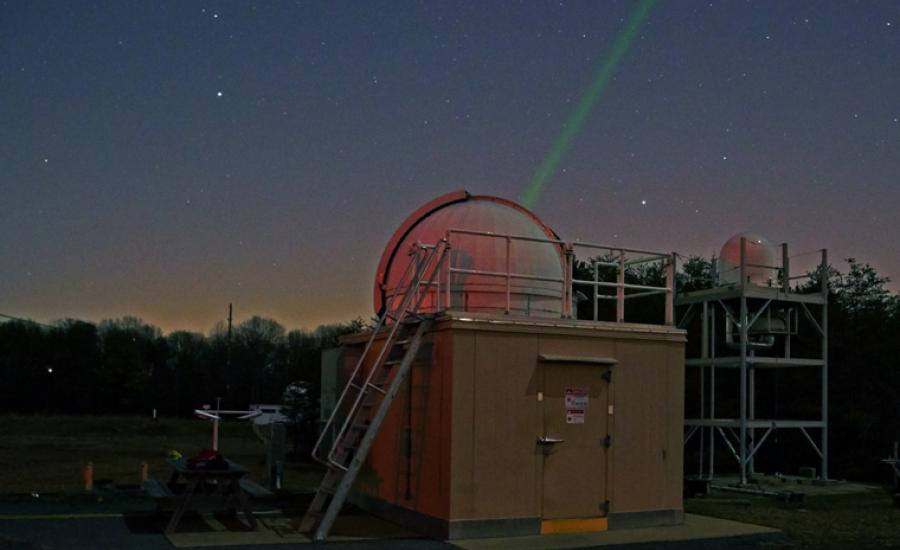

NASA Goddard Space Flight Center, Global Space Geodesy Network. Public-domain government image. Source.
What the Modern Surveyor Can Carry Forward
Lunar laser ranging is surveying stripped to essentials—known endpoints, measured travel time, calibration, environmental correction, adjustment, and an evolving reference frame.
The Apollo hardware remains useful because its geometry and records are maintained. It is a vivid example of why durable monuments and long observational histories matter.
A practical study exercise is to reconstruct one observation from surveying, navigation, and geodesy in spaceflight. Identify the instrument, raw quantity, reference surface or origin, corrections, and final published value. Mark which pieces were directly observed and which came from a table, model, assumption, or earlier survey. The resulting diagram often explains more than a list of dates.
Terminology must be handled carefully. Historic uses of “survey,” “map,” “accuracy,” “station,” or “datum” may not match current specifications. Units, scale, prime meridian, calendar, orientation, and transliteration can also change between sources. Apparent disagreement should be normalized before it is interpreted.
Illustrations are evidence only when their provenance is understood. A surviving map may be a copy or later reduction. A museum photograph may show an instrument that resembles, but is not identical to, the equipment used in a particular campaign. Captions on this site identify the image source and license, while the text distinguishes illustrative material from documentary proof.
The strongest account combines official reports, objects or maps, personal records, and later technical analysis. Official records explain intended procedure; working documents reveal implementation; later scholarship identifies systematic effects or social context that the original authors did not discuss.
Older work should be judged against the standards and instruments available to it. Historical crews often achieved remarkable consistency by repeating angles, carrying standards, choosing geometry carefully, and documenting exceptions. Display resolution is not the same as accuracy, in an old instrument or a modern one.
surveying, navigation, and geodesy in spaceflight ultimately became durable because it was infrastructure. Marks, tables, records, shared conventions, trained people, and revision procedures allowed later users to recover and extend the work. A memorable individual may begin a project, but a maintained system gives it a life beyond that individual.
A practical study exercise is to reconstruct one observation from surveying, navigation, and geodesy in spaceflight. Identify the instrument, raw quantity, reference surface or origin, corrections, and final published value. Mark which pieces were directly observed and which came from a table, model, assumption, or earlier survey. The resulting diagram often explains more than a list of dates.
Terminology must be handled carefully. Historic uses of “survey,” “map,” “accuracy,” “station,” or “datum” may not match current specifications. Units, scale, prime meridian, calendar, orientation, and transliteration can also change between sources. Apparent disagreement should be normalized before it is interpreted.
Illustrations are evidence only when their provenance is understood. A surviving map may be a copy or later reduction. A museum photograph may show an instrument that resembles, but is not identical to, the equipment used in a particular campaign. Captions on this site identify the image source and license, while the text distinguishes illustrative material from documentary proof.
The strongest account combines official reports, objects or maps, personal records, and later technical analysis. Official records explain intended procedure; working documents reveal implementation; later scholarship identifies systematic effects or social context that the original authors did not discuss.
Older work should be judged against the standards and instruments available to it. Historical crews often achieved remarkable consistency by repeating angles, carrying standards, choosing geometry carefully, and documenting exceptions. Display resolution is not the same as accuracy, in an old instrument or a modern one.
surveying, navigation, and geodesy in spaceflight ultimately became durable because it was infrastructure. Marks, tables, records, shared conventions, trained people, and revision procedures allowed later users to recover and extend the work. A memorable individual may begin a project, but a maintained system gives it a life beyond that individual.
A practical study exercise is to reconstruct one observation from surveying, navigation, and geodesy in spaceflight. Identify the instrument, raw quantity, reference surface or origin, corrections, and final published value. Mark which pieces were directly observed and which came from a table, model, assumption, or earlier survey. The resulting diagram often explains more than a list of dates.
Terminology must be handled carefully. Historic uses of “survey,” “map,” “accuracy,” “station,” or “datum” may not match current specifications. Units, scale, prime meridian, calendar, orientation, and transliteration can also change between sources. Apparent disagreement should be normalized before it is interpreted.
Illustrations are evidence only when their provenance is understood. A surviving map may be a copy or later reduction. A museum photograph may show an instrument that resembles, but is not identical to, the equipment used in a particular campaign. Captions on this site identify the image source and license, while the text distinguishes illustrative material from documentary proof.
The strongest account combines official reports, objects or maps, personal records, and later technical analysis. Official records explain intended procedure; working documents reveal implementation; later scholarship identifies systematic effects or social context that the original authors did not discuss.
Older work should be judged against the standards and instruments available to it. Historical crews often achieved remarkable consistency by repeating angles, carrying standards, choosing geometry carefully, and documenting exceptions. Display resolution is not the same as accuracy, in an old instrument or a modern one.
surveying, navigation, and geodesy in spaceflight ultimately became durable because it was infrastructure. Marks, tables, records, shared conventions, trained people, and revision procedures allowed later users to recover and extend the work. A memorable individual may begin a project, but a maintained system gives it a life beyond that individual.
A practical study exercise is to reconstruct one observation from surveying, navigation, and geodesy in spaceflight. Identify the instrument, raw quantity, reference surface or origin, corrections, and final published value. Mark which pieces were directly observed and which came from a table, model, assumption, or earlier survey. The resulting diagram often explains more than a list of dates.
Terminology must be handled carefully. Historic uses of “survey,” “map,” “accuracy,” “station,” or “datum” may not match current specifications. Units, scale, prime meridian, calendar, orientation, and transliteration can also change between sources. Apparent disagreement should be normalized before it is interpreted.
Illustrations are evidence only when their provenance is understood. A surviving map may be a copy or later reduction. A museum photograph may show an instrument that resembles, but is not identical to, the equipment used in a particular campaign. Captions on this site identify the image source and license, while the text distinguishes illustrative material from documentary proof.
The strongest account combines official reports, objects or maps, personal records, and later technical analysis. Official records explain intended procedure; working documents reveal implementation; later scholarship identifies systematic effects or social context that the original authors did not discuss.
Older work should be judged against the standards and instruments available to it. Historical crews often achieved remarkable consistency by repeating angles, carrying standards, choosing geometry carefully, and documenting exceptions. Display resolution is not the same as accuracy, in an old instrument or a modern one.
surveying, navigation, and geodesy in spaceflight ultimately became durable because it was infrastructure. Marks, tables, records, shared conventions, trained people, and revision procedures allowed later users to recover and extend the work. A memorable individual may begin a project, but a maintained system gives it a life beyond that individual.
A practical study exercise is to reconstruct one observation from surveying, navigation, and geodesy in spaceflight. Identify the instrument, raw quantity, reference surface or origin, corrections, and final published value. Mark which pieces were directly observed and which came from a table, model, assumption, or earlier survey. The resulting diagram often explains more than a list of dates.
Terminology must be handled carefully. Historic uses of “survey,” “map,” “accuracy,” “station,” or “datum” may not match current specifications. Units, scale, prime meridian, calendar, orientation, and transliteration can also change between sources. Apparent disagreement should be normalized before it is interpreted.
Illustrations are evidence only when their provenance is understood. A surviving map may be a copy or later reduction. A museum photograph may show an instrument that resembles, but is not identical to, the equipment used in a particular campaign. Captions on this site identify the image source and license, while the text distinguishes illustrative material from documentary proof.
